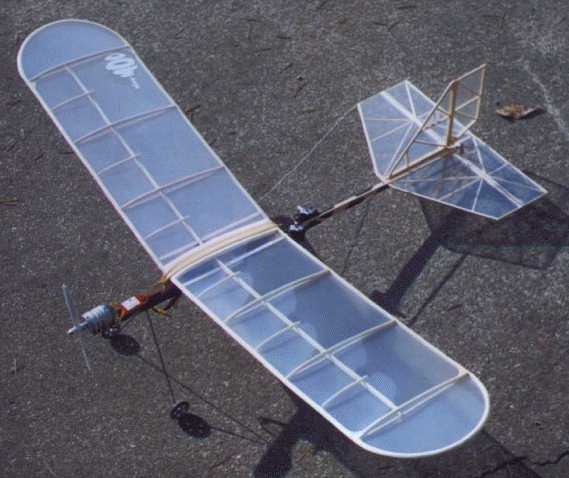

"Tiny Moo" By Ron Fikes at srfikes@earthlink.net
Indoor Outdoor Slowflyer (Update Jan 22, 2000)
The Free Tiny Moo Plans are in jpg format two sheets. Click here for Download
Speed 280 direct drive with 5"X2" prop (kyosho EP-4)
110mah 7 cell battery
Jeti 05 ESC
Cirus CS-20 Servos
Fma Tetra Receiver
Covering - .0015 (1.5 mil) mylar or tissue
Pull Pull rudder - Pushrod on elevator
Wing glued on or a platform added to pylon - wing rubber banded on
All up weight - 8oz
The Free Tiny Moo Plans are in jpg format two sheets. Click here for Download
Ron has an updated Tiny Moo with the option of more wing and more stylish tail feathers the updated information will be posted here after conversion and scanning, but if you want them sooner or full scale contact Ron Fikes at srfikes@earthlink.net
Some alternate power options
This is to all who have purchased my "tiny MOO" plans - the plans call for a Speed 280 direct-drive motor. The plane has been tested with a geared motor, the Max #1 (#22904) by Dymond. It is a lighter motor that runs at lower current - still enough power to fly well and LONGER. http://www.rc-dymond.com
This model should also work well with the POT 2 and POT 2A series from Hobby Lobby. http://www.hobby-lobby.com
Another battery system has also been tried - a 7 cell 270 mAh NiMh pack (the same size as 110 mAh Nicads). These batteries can be purchased from Batteries America http://www.batteriesamerica.com for $2.50 each (#AP-270 AAH)
Hope this helps... change is good!
Ron Fikes at srfikes@earthlink.net Offers Scale plans for $5.00
